Insulation Test Unit EST-ISO


For laboratory and system application

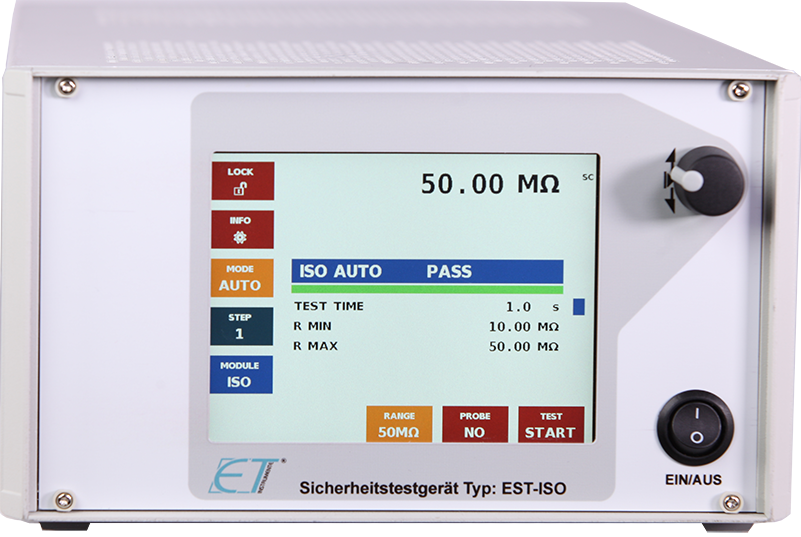

 EST ISO Front ENG LQ

Insulation Test Unit with Safety Current Limitation

• Test Voltage 500 Vdc
• Safety current limited maximum 4 mA
• PASS / FAIL indicator, optically and acustically
• Automatic and manuel operation
• Adjustable test time

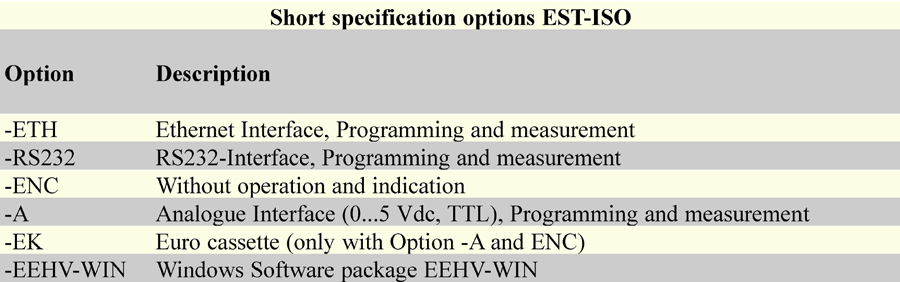

• USB Optional RS 232-, Ethernet or Analogue Interface

The insulation test unit EST-ISO is measuring with a test voltage of 500 V DC the insulation resistance of components, units and systems. The resistance measurement range is 0,5 M Ohm to 50 M Ohm. The insulation unit has got safety current limitation which is connected with short switch off times in case of an error. The measurement resolution is 12 bit. The adaption to the test item follows via plug and 4mm plug-in sockets.

Params 64 Unit Type Insulation Test Unit EST-ISO

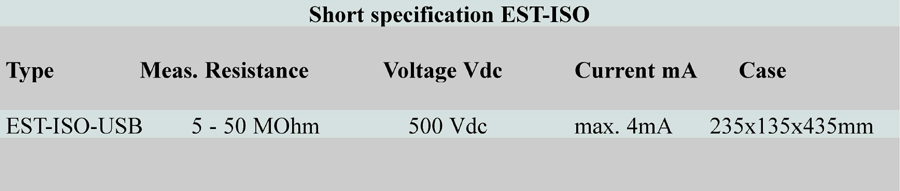

Short specification EST ISO
